CUSTOM FUEL DOORS
FOR RODS, CUSTOMS, AND TRUCKS
Our fuel doors are constructed from mild steel. They are designed to be welded into steel panels or bonded to fiberglass panels. When installing in fiberglass they are bonded to the back side and the door is set to rise up and the through the cut out. This technique eliminates seams that would surely show when shrinkage occurs. Let us know when you order so we can prepare your fuel door for a fiberglass installation. Pictured sequenced instructions will guide you through the procedure. Review the "HOW TO ORDER" information to select the proper part and call us if you need further assistance.
NEW FUEL DOORS NOW AVAILABLE!(available in 90 Series ONLY)
A new oval (OVC/OVF) and rectangular (RGC/RGF) door with a larger opening that makes it easier to refuel at stations that have larger vapor recovery tubes.
For the serious Chevy enthusiast we now have a BOWTIE (BTC/BTF) door that lets you show off the love of your ride.
(no pictures of these new doors are currently available)
90 Series Curved
90 Series Flat
45 Series Curved
45 Series Flat
90 Series Curved

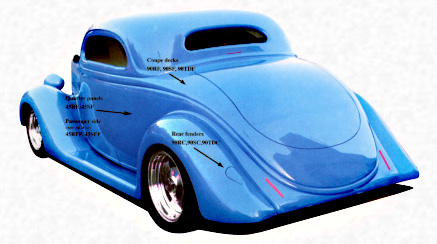

H90RC $120.00 H90SC $120.00 H90TDC $120.00 H90OVC $120.00 H90RGC $120.00 H90BTC $120.00 These items are designed to fit the rear fender for most vehicles of the '30s, '40s, and '50s cars and trucks. The contour can be increased to a maximum curvature.
Spout is straight in from the door.
90 Series Flat
H90RF $120.00 H90SF $120.00 H90TDF $120.00 H90OVF $120.00 H90RGF $120.00 H90BTF $120.00 These items am designed to fit side aprons, truck beds, top of quarter panels as found on '28 thru '40 coupes & sedans.
Spout is straight in from the door.
45 Series Curved
H45RC $120.00 H45SC $120.00 H45TDC $120.00 H45OVC $120.00 H45RGC $120.00 H45RCP $120.00 H45SCP $120.00 H45TDCP $120.00 H45OVCP $120.00 H45RGCP $120.00 These items are designed to fit the rear corner of panel vans, pick up cabs and areas like the rear corner of an early sedan.
Spout is at 45 degree degree down angle.
45 Series Flat
H45RF $120.00 H45SF $120.00 H45TDF $120.00 H45OVF $120.00 H45RGF $120.00 H45RFP $120.00 H45SFP $120.00 H45TDFP $120.00 H45OVFP $120.00 H45RGFP $120.00 These items are designed to fit side panels that have a slight curve.
Spout is at 45 degree degree down angle.
Quarter Panel Series
H45RQ $120.00 H45SCQ $120.00 H45TDQ $120.00 H45OVQ $120.00 H45RGQ $120.00 H45RQP $120.00 H45SCQP $120.00 H45TDQP $120.00 H45OVQP $120.00 H45RGQP $120.00 These items are designed to have a slight curve at top.
Spout is at 45 degree degree down angle.
HOW TO ORDERCut out the "actual curve" template on the edge of this page. Select a position on your vehicle and check it with the template.
-If the panel is a match or the curve of the panel is sharper but not more than the maximum curve template, you need a curved part.
-if panel is a little less than the "actual curve" template, order an unwelded curved part, Unwelded means the top skin is not welded to the housing allowing you to manipulate the contour for a perfect fit.
-If the panel is almost flat, order a flat part. You can put a slight curve in the surface to match areas like quarter panels.
-If the panel is convex, order an unwelded flat part.
Determine whether you need a 90 degree or a 45 degree spout
To select the proper style review the dimensions below and read the descriptions of each part.
Part Number example: 90 RC
90 = angle between spout and surface (90 or 45 degrees)
R = shape of the door (Round, Square, TearDrop)
C = shape of the surface (Curved or Flat/near flat)
|
|
|
|
|
| All Prices subject to change without notice. |
